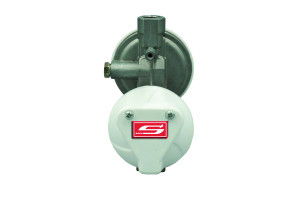

Suburban LP-R924 Automatic Changeover Regulator With Shut Off Valve, 1/4" Inverted Flare x 3/8" Female NPT, 160,000 BTU

Suburban LP-R924 Automatic Changeover Regulator With Shut Off Valve, 1/4" Inverted Flare x 3/8" Female NPT, 160,000 BTU

Suburban RV
SKU:
LP-R924
|
UPC:
677917011926
$84.78
$93.99
(You save $9.21 )
Weight:
1.50 LBS
Width:
6.88 (in)
Height:
10.94 (in)
Depth:
4.56 (in)
Fixed Shipping Cost:
$9.95
Current Stock:
Description

Suburban LP-R924 Automatic Changeover Regulator With Shut Off Valve, 1/4" Inverted Flare x 3/8" Female NPT, 160,000 BTU

Suburban's Automatic Changeover Regulator automatically switches from empty service cylinder to full reserve cylinder, ensuring continuous gas flow to appliances. A highly visible full/empty indicator signals refill. This unique indicator is also visible from the top when viewed through propane tank cover lid, eliminating the need to remove the entire propane tank cover to view which cylinder is full or empty. Adjustable pressure setting and high temperature resistant diaphragm. Kit includes already assembled mounting bracket for ease of installation and the plastic vent cover required by RVIA. Safety features include: Built-in back check valve that allows empty cylinder removal and refill as reserve cylinder remains operational. An Excess Flow Device: ensures protection with all hose connections. Limits gas flow in the event of hose rupture or accidental disconnection. Overpressure Protection Device: Limits environmental propane release in case of regulator malfunction to a value less than 2 psi, significantly lower than that mandated by UL standard 144. Adjustable pressure setting. 160,000 BTU/hour - Inlet's: (2) 1/4" inverted flare, Outlet: 3/8" Female Pipe Thread. UL listed.

  • Inlet Size: 1/4" inverted flare.
  • Outlet Size: 3/8" female NPT.
  • Outlet Pressure: 11" WC.
  • Single stage regulator.
  • BTU: 160,000/hr.
  • With shut off valve.
  • ISO 9001:2015 certified.
  • Weight: 3 lbs.
  • Limited 90-Day Manufacturer Warranty.
